MR-DB-1002

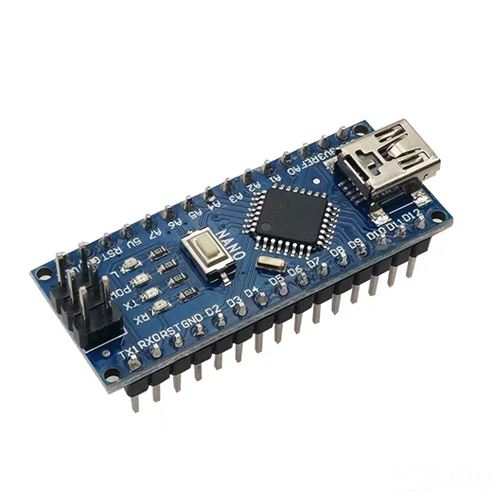

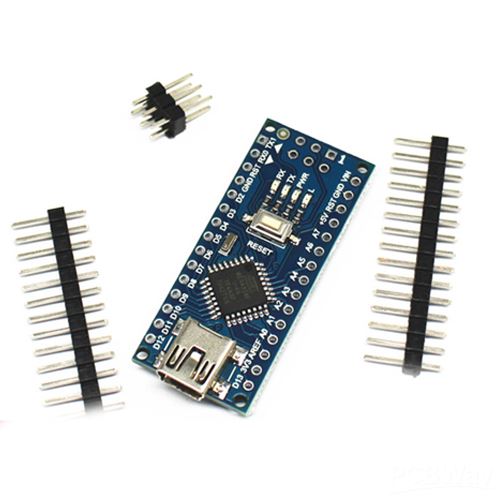

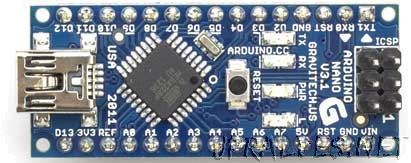

This Arduino-compatible Nano V3.0 micro-controller is a small, complete, micro-controller board based on the ATmega328 MCU. It lacks only a DC power jack, and uses the more compact Mini USB (Mini-B) connector instead of a standard USB connector.
It is compatible with Arduino programs and the Arduino IDE. This version of the Nano uses the CH340G USB interface controller.
It can be powered via the Mini-B USB connection, a 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
